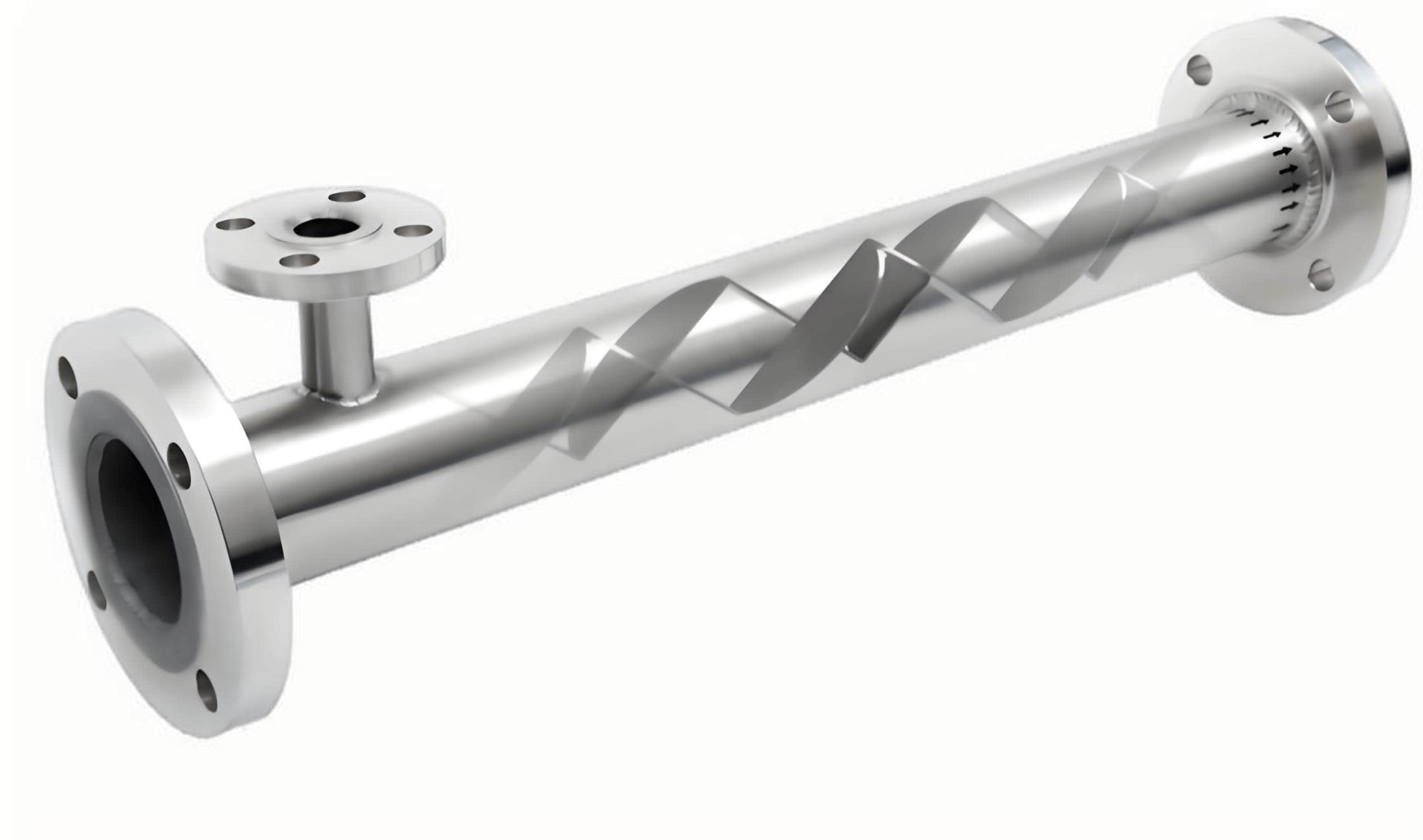

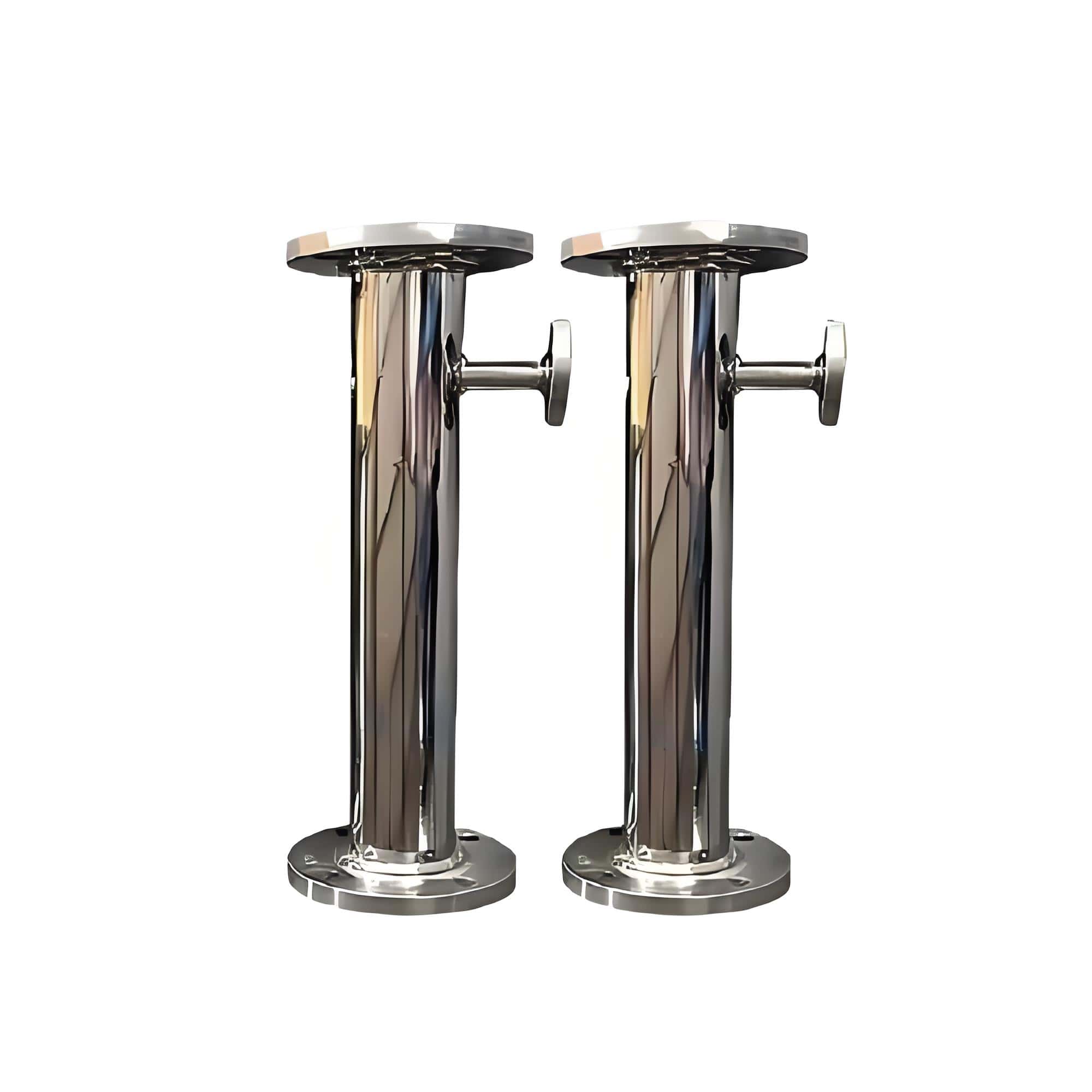

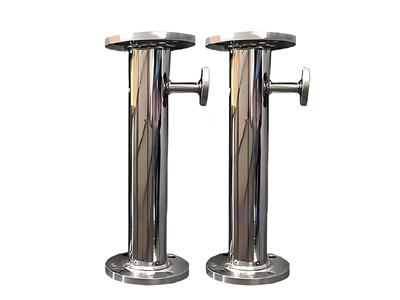

Tubular Static Mixer

A tubular static mixer is a stationary device with a specialized internal structure. It achieves uniform mixing of fluids or gases as they flow through a pipe without the need for moving parts. This type of mixer is used in a wide range of industries, including chemical processing and manufacturing, for operations such as emulsification, dispersion, and mixing. It ensures consistent product quality without relying on external power sources and requiring minimal maintenance.

Working Principle

1. Internal Components: Molded components or mixing elements with specialized geometric designs are installed within the pipe.

2. Flow Disruption: As the fluid passes through these elements, its flow is continuously disrupted, divided, and then recombined, promoting mixing.

3. No External Power: The entire mixing process is powered entirely by the fluid's own flow, eliminating the need for additional power devices such as pumps or motors.

Key Features and Advantages

1. Maintenance-Free: With no moving parts, static mixers require virtually no maintenance.

2. Energy-Efficient: Since the mixing process is not driven by a motor, energy consumption is extremely low.

3. Versatile: It can operate under both laminar and turbulent flow conditions, depending on the fluid viscosity and operating conditions.

4. Cost-Effective: Efficient mixing reduces over-addition of chemicals, saving costs and improving product quality.

5. Compact: Its simple and compact design allows for easy installation into existing piping systems.

Applications

Tubular static mixers are used in a wide range of applications, including the following:

1. Chemical Processing: Used in processes such as emulsification, homogenization, and dispersion.

2. Polymer Production: Ensures consistent temperature and flow rates for quality control.

3. Water Treatment: Used for efficient mixing of chemicals and other additives.

4. Food Production: Used for blending raw materials to maintain product consistency.

5. Mining and Mineral Processing: Used for preparing and mixing slurries of water and solids.
