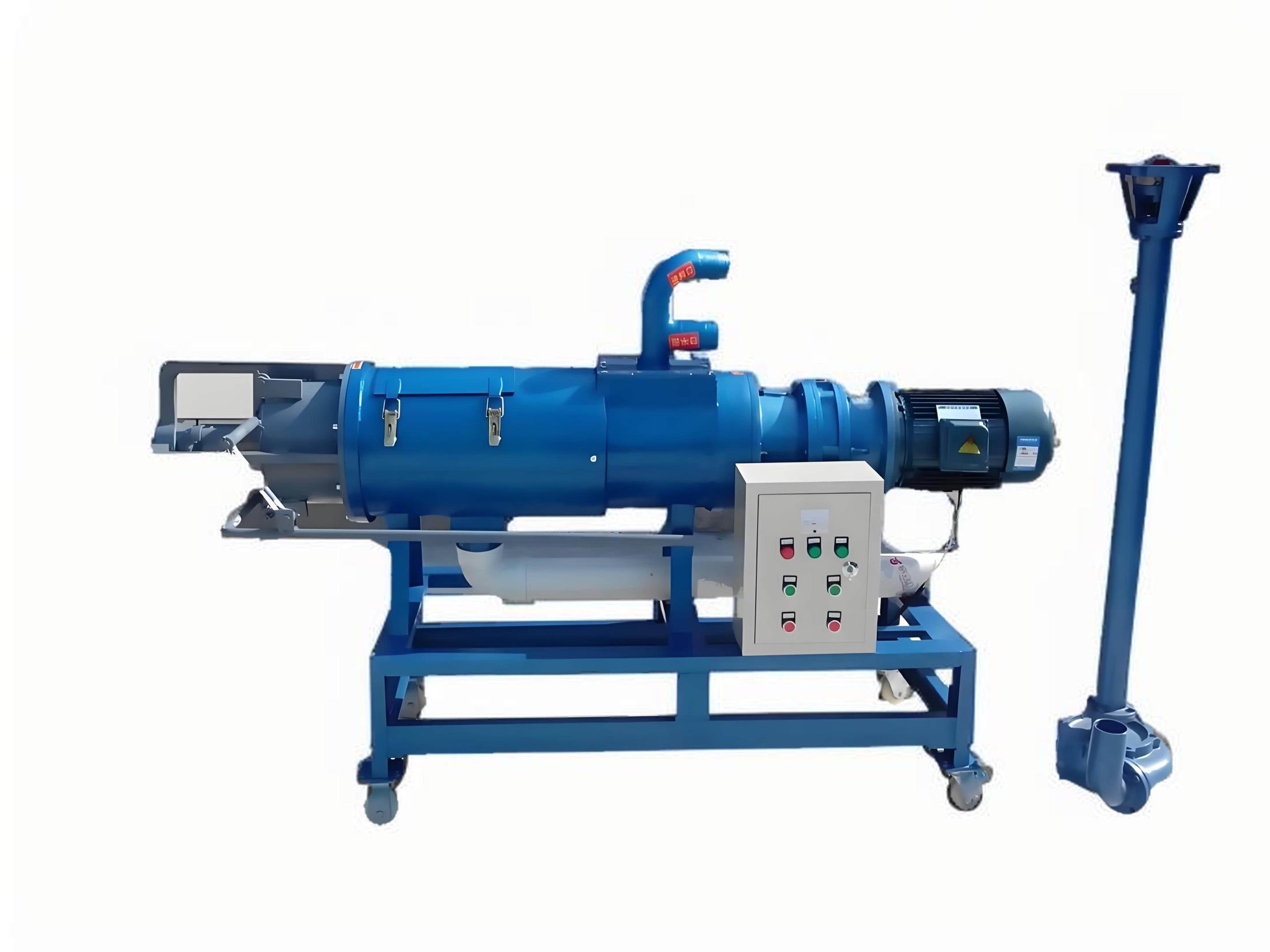

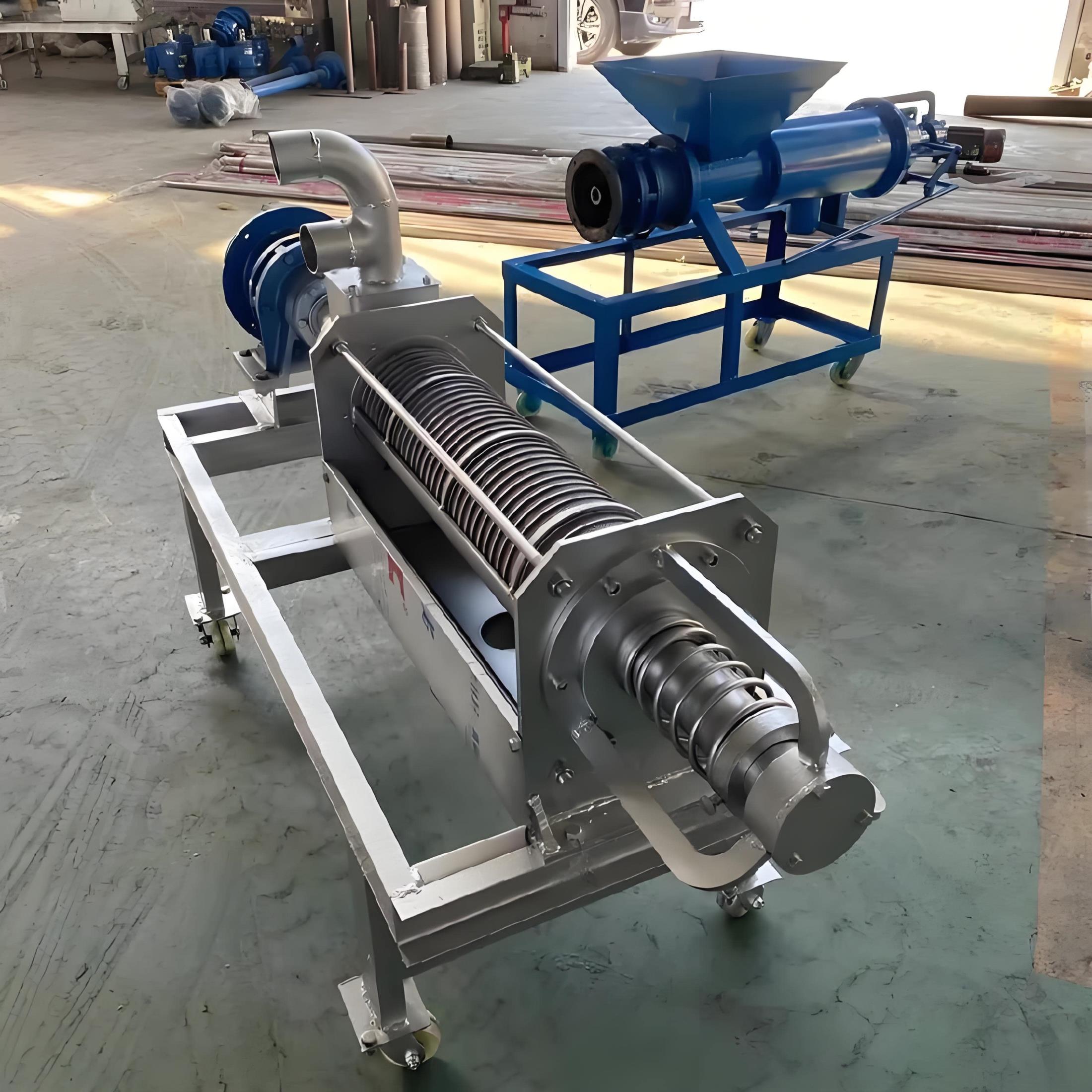

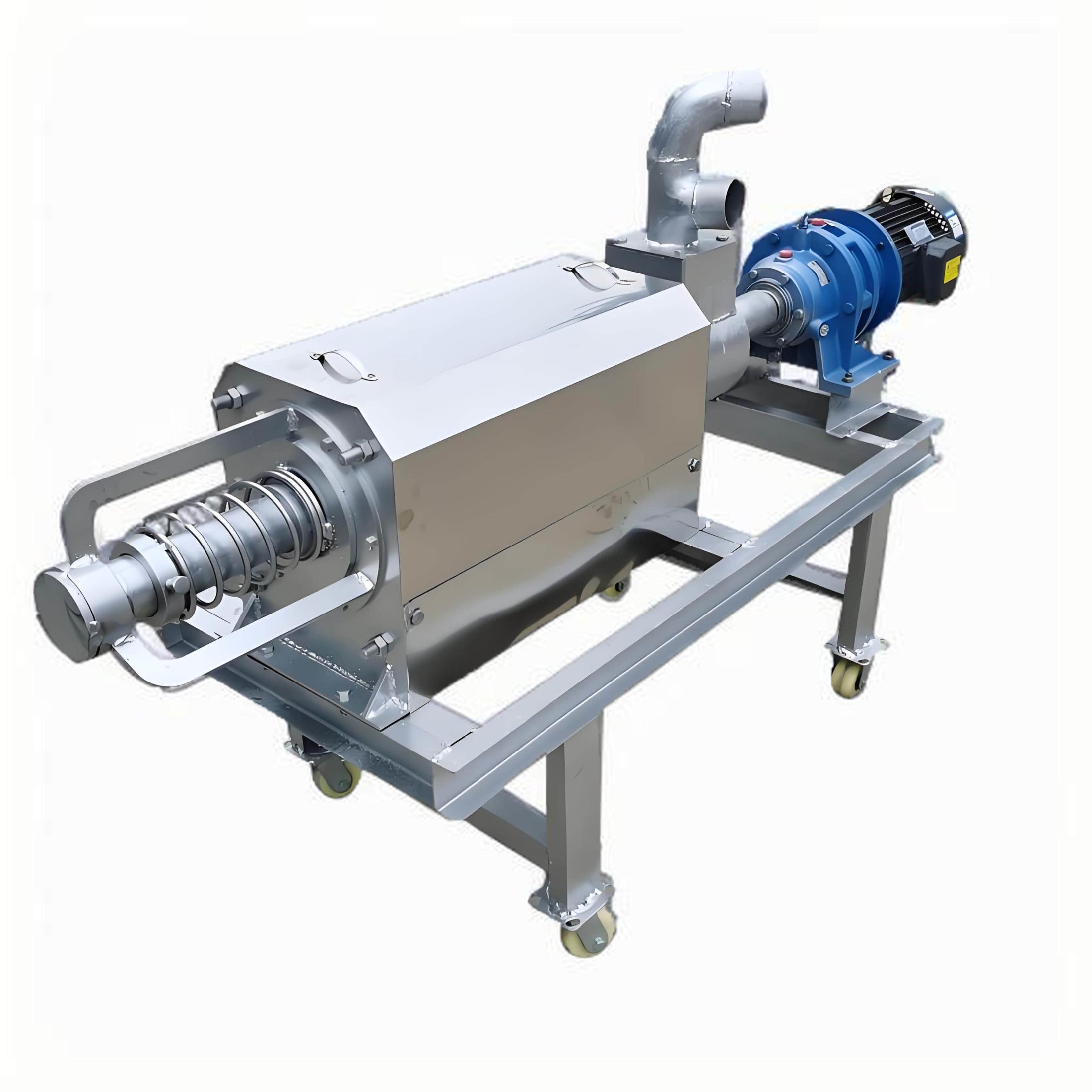

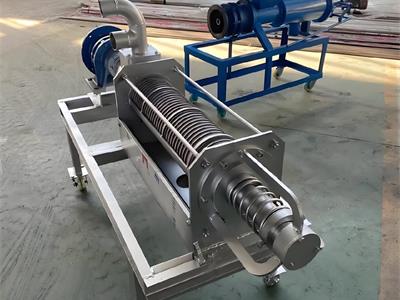

Solid-Liquid Separator

The NFJ series rotary solid-liquid separator is designed for solid-liquid separation in various industrial wastewater applications. It effectively removes fine particles with diameters above 15 µm from the water, utilizing a central water inlet design.

The filter screen of this machine is constructed from stainless steel, significantly enhancing its corrosion resistance. Equipped with an automatic backwash function, it efficiently cleans residual solids stuck to the screen cylinder. Featuring a compact design, the machine ensures continuous and automatic removal of contaminants. After entering the filter, the sewage flows from the inside of the rotating drum to the outside. Suspended solids in the water are captured by the filter screen and carried upwards as the drum rotates. These solids are then flushed into the collection tank and discharged by the backwash water.

This device has the following features:

Fully automatic cleaning; The cleaning process is continuous and does not affect the normal operation of system.

The filtration precision may reach 15um.

It can be constructed entirely from stainless steel to meet specific water quality requirements.

Filtration capacity: 50m3-500m3/h

Maximum water consumption for backwash: 2.24-8.5 m³/h.

Automatic backwash control with freely adjustable backwash frequency.

The filtration process operates without pressure, resulting in low operating costs.





Mesh drum diameter



Rotary Solid-Liquid Separator





Main Technical Parameters and Model Selection Table

序号   S/N	项目(单位)   Item   (unit)	规格参数   Specifications
		NFJ-600	NFJ-800	NFJ-1000	NFJ-1200	NFJ-1400	NFJ-1500
1	转鼓直径(mm)     Diameter   of rotary drum (mm)	600	800	1000	1200	1400	1500
2	转鼓长度(mm)     Length   of rotary drum (mm)	1000	1200	1400	1600	1800	2600
3	过滤面积(m2)       Filtration   area (m²)	1.88	3.01	4.40	6.03	7.91	12.25
4	过滤水量(m3/h)    Filtration   flow rate (m³/h)	50	100	150	200	300	500
5	反冲水量(m3/h)    Backwash   flow rate (m³/h)	2~2.24	2.73	3.23	3.73	4.22	8.5
6	反冲压力(Mpa)    Backwash   pressure (Mpa)	0.30~0.40	0.30~0.40	0.30~0.40	0.30~0.40	0.30~0.40	0.30~0.40
7	推存反冲泵型号           Recommended   model of the backwash pump	ISG20-160	ISG20-160	ISG25-160	ISG25-160	ISG25-160	ISG25-160
8	电机功率(Kw)      Motor   power (Kw)	0.55	0.55	0.75	0.75	0.75	1.50
9	进水管径DN(mm)         Diameter   of inlet pipe DN (mm)	100	125	150	200	300	400
10	出水管径DN(mm)         Diameter   of outlet pipe DN (mm)	100	125	150	200	300	300×2

Note: The above water flow parameters are based on the use of a 120-mesh filter screen. The water flow parameters will vary depending on the suspended solids in the raw water and the filtration precision.
