Integrated Water Purifcation Equipment

What's Integrated Industrial Water Purification Equipment?

Fupeng's integrated industrial water purification equipment combines nine functions: flocculation, reaction, sedimentation, wastewater discharge, backwashing, sludge thickening, and filtration. It can treat high-concentration industrial wastewater (3000 mg/L) to purified water (≤5 mg/L), achieving a water recovery rate of up to 98%. It operates automatically without the need for professional personnel.

Features of Industrial Integrated Water Purifier

High-efficiency purification	98% system water recovery rate, influent turbidity as low as ≤5 mg/L
Fully automatic operation	Multifunctional design, no professional personnel required (saving 80% of labor
Energy-saving water pumps	High-efficiency booster and circulation pumps reduce input power and electricity consumption
Compact design	Small footprint while reducing system head loss
Highly adaptable	Can handle high-concentration industrial wastewater of varying turbidity.

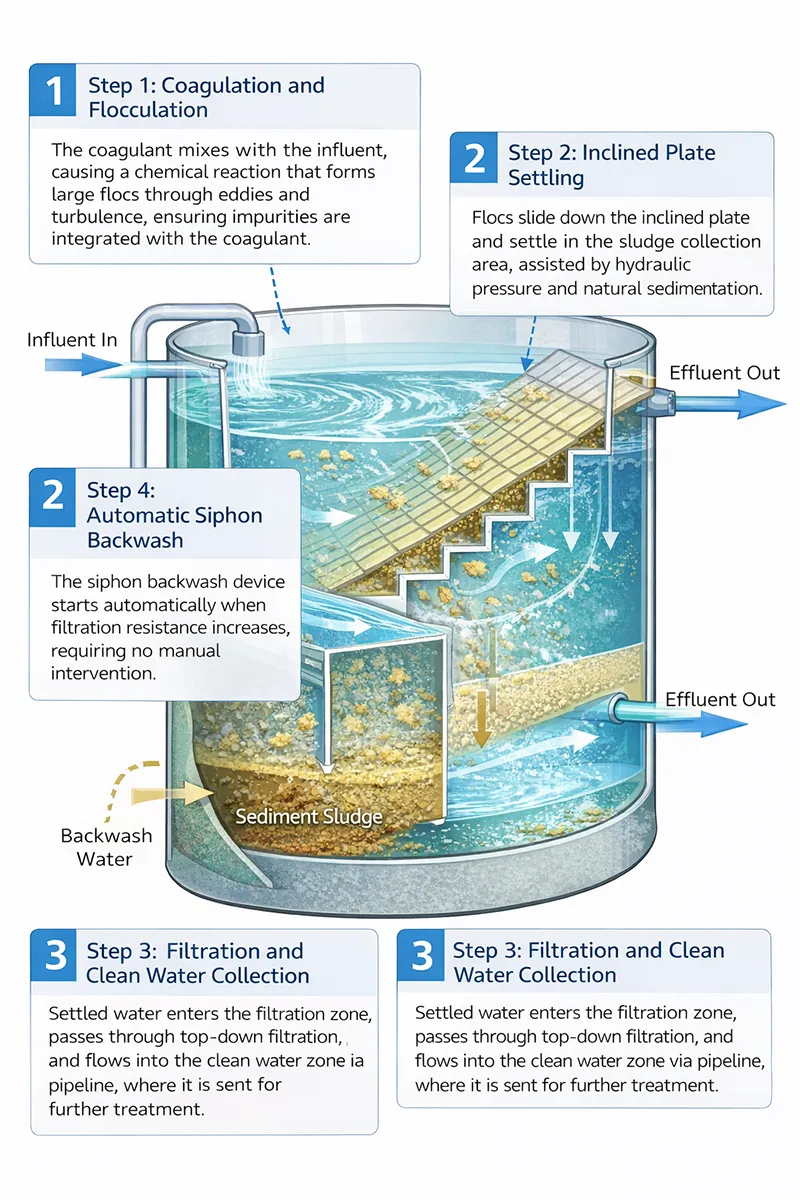

Operating Principle Of Automatic Backwash Water Purifier

Step 1: Coagulation and Flocculation

The coagulant mixes with the influent, causing a chemical reaction that forms large flocs through eddies and turbulence, ensuring impurities are integrated with the coagulant.

Step 2: Inclined Plate Settling

Flocs slide down the inclined plate and settle in the sludge collection area, assisted by hydraulic pressure and natural sedimentation.

Step 3: Filtration and Clean Water Collection

Settled water enters the filtration zone, passes through top-down filtration, and flows into the clean water zone via pipeline, where it is sent for further treatment.

Step 4: Automatic Siphon Backwash

The siphon backwash device starts automatically when filtration resistance increases, requiring no manual intervention.

Technical Parameters of Integrated Water Purification Equipment

Installation and Maintenance

Simple installation with detailed professional guidance;

Maintenance is provided for up to one year.

Installation Requirements

Install on a custom-designed concrete structure to ensure the stability of the containerized design.

Connect inlet and outlet pipes strictly according to the technical drawings to avoid leakage.

This device uses a three-phase 380V power supply for automatic operation.
