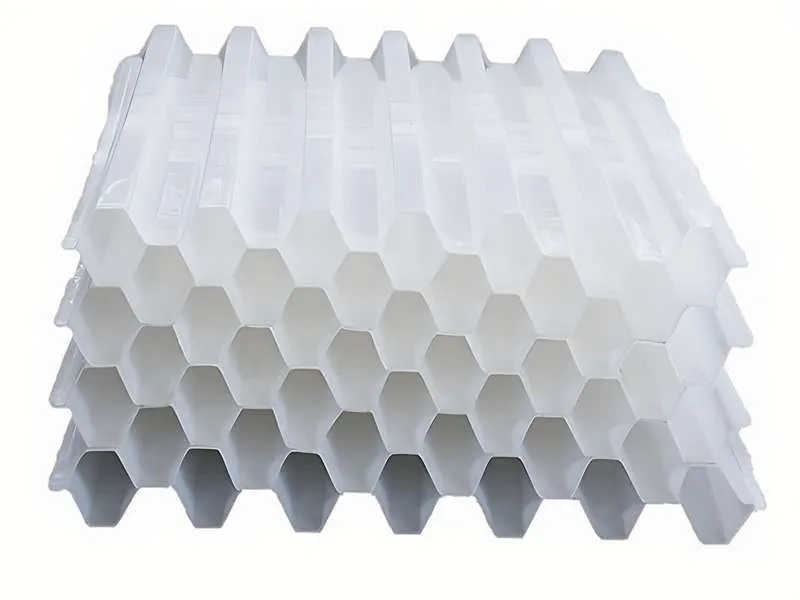

Honeycomb Inclined Tube Filler

Honeycomb Inclined Tube Filler

Our hexagonal honeycomb filters are available in inclined tube and straight tube. The materials include polypropylene, polyvinyl chloride, and glass fiber reinforced plastic.

Product Name	Modified biological  suspension filler	Number of Stacked	>118000pcs/m³
Product Material	HDPE	Specific Surface Area	>800(m²/m³)
Service Life	≥15(years)	Porosity	>95%
Number of Holes	34	Recommended Allocation Rate	15-70%
Film Density	≈1(g/m³)	Nitrification Efficiency	500-1200g(NH4-N/m³.d)
Film Forming Time	5-15(days)	BOD5 Oxidation Efficiency	2000-10000g(BOD5/m³.d)
Product Specifications	φ25x15(mm)	COD Oxidation Efficiency	2000-15000(gCOD5/m³.d)
Proportion	0.94~0.96(g/m³)	Applicable temperature	5-60ºC
Note: The above data is for reference only. The parameters and selection are subject to confirmation by both parties. They can be used in combination, and other non-standard tonnages can be customized.

Inclined tubes, primarily used for various sedimentation and sand removal processes, have been one of the most widely adopted and mature water treatment devices in water supply and drainage engineering for more than a decade. With the advantages of wide application range, high treatment efficiency, and small area coverage, it is suitable for removing suspended solids, colloids, and silt from water, as well as for general industrial and domestic water supply sedimentation, sewage sedimentation, oil separation, and tailings thickening treatment. It is applicable to both new construction projects and the renovation of existing old pools, and can achieve good economic benefits in both cases.

Straight tubes are primarily used as microbial carriers in biological filters, high-load biological filters, tower biological filters, submerged biological filters (also known as contact oxidation tanks), and microbial carrier of biological rotating disc for the biochemical treatment of industrial organic wastewater and urban sewage.
