Dissolved Air Flotation Machine

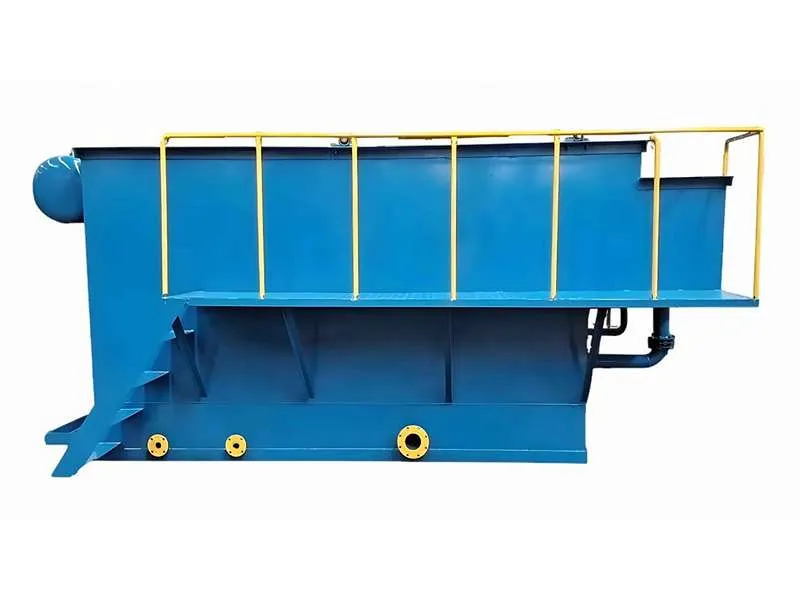

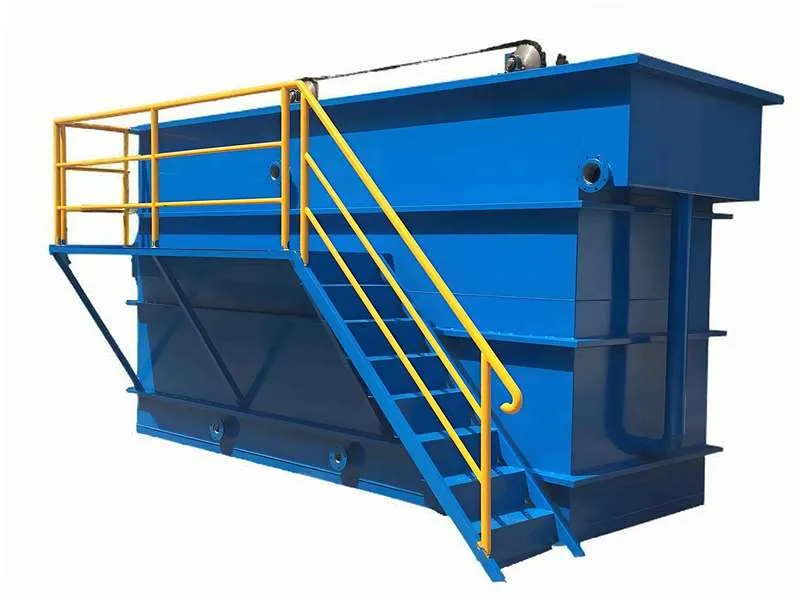

Dissolved air flotation（DAF） machine Description

The high-efficiency dissolved air flotation machine consists of a highly efficient air dissolution system designed based on next-generation solid-liquid separation technology. This enables the equipment to effectively remove organic and inorganic suspended solids, flocculants, phosphorus (P), and oil and grease from industrial wastewaters such as those from refining, chemical processing, brewing, vegetable oil production and refining, slaughtering, electroplating, and printing and dyeing.

Model	FPAF-5	FPAF-10	FPAF-15	FPAF-20	FPAF-35	FPAF-50	FPAF-75	FPAF-100	FPAF-150
Processing capacity(m³/h)	3	5	10	20	35	50	75	100	150
Length(m)	2.8	3.2	4	5.5	7.5	9.1	10.6	11.8	13.5
Width(m)	1.2	1.2	1.6	1.8	1.8	2.2	2.2	2.5	3
Height(m)	1.2	1.2	1.2	1.5	1.8	1.8	2.3	2.3	2.6
Reflux pump power(kw)	3	3	4	4	7.5	7.5	15	18.5	18.5
Scraper power(kw)	0.37	0.37	0.37	0.37	0.37	0.37	0.55	0.55	0.75

System Applications

• DAF System for Food Processing Wastewater

• Oil and Gas Wastewater

• Pulp and Paper Mill Wastewater

• Chemical Manufacturing Wastewater

• Textile Wastewater

• Pharmaceutical Wastewater

• Mining and Metal Processing Wastewater

• Municipal Wastewater Treatment Plants

Dissolved Air Flotation Machine Uses And Advantages

The purpose of a dissolved air flotation machine is to reduce or remove chemical oxygen demand (COD), total suspended solids (TSS), and aerosolized particulate matter (FOG) from industrial wastewater. The DAF machine uses fine air bubbles (also known as "white water") that attach to suspended matter in the wastewater stream, increasing its buoyancy and causing it to rise to the surface. The floating solids are then removed by a simple yet effective scraper mechanism. Chemical conditioning agents are often used to enhance the efficiency of the DAF process.

The DAF process uses the most reliable and efficient method for generating optimally sized bubbles. Air is dissolved in water under pressure, and then a controlled nozzle orifice is used to reduce the pressure entering the DAF tank. As the pressure decreases, the air naturally escapes from the solution as microbubbles.

Packaging

Packaged in plywood boxes or containers.

Our Services

• FupengWater has 23 years of experience in designing custom wastewater treatment systems. We can design and install them to meet your project requirements, reducing your investment costs.

• Standard designs are tailored to your application, needs, and budget. As one of China's leading DAF Wastewater Treatment manufacturers, we can manufacture and accept orders for any special requirements. - Provide installation and commissioning support.

FupengWater is a leading manufacturer of Dissolved Air Flotation System for industrial wastewater treatment, offering customized solutions tailored to project needs. To develop a suitable solution, we require detailed information about your project, including treatment capacity, wastewater source, and wastewater quality (SS, BOD, COD, FOG, etc.).
