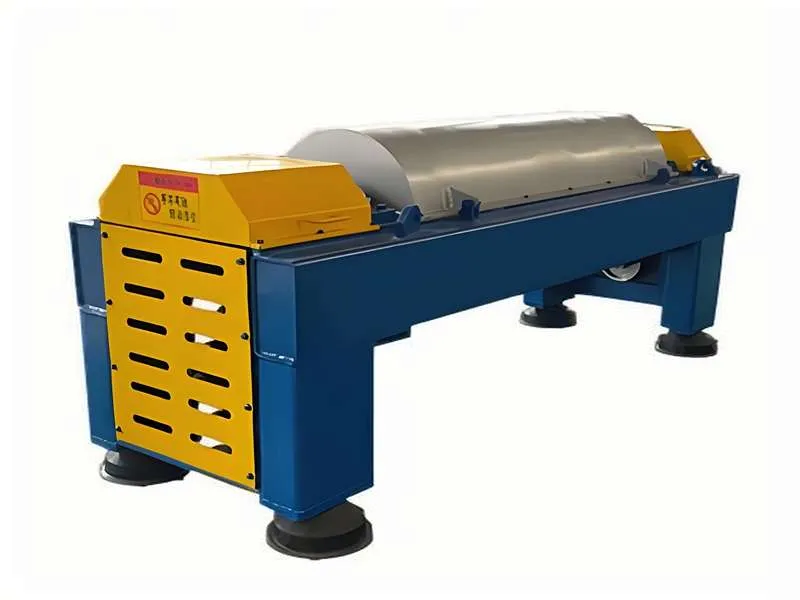

Sludge Dewatering Machine

A Sludge Dewatering Machine, also known as a decanter centrifuge, is a type of industrial equipment. It utilizes a high-speed rotating drum and an internal screw conveyor to separate the solid and liquid phases of a slurry or suspension using centrifugal force. This process effectively dewaters sludge and achieves solid-liquid separation in applications such as plastic recycling and wastewater treatment. It can even be used to dry vegetables by forcefully removing moisture from the material.

Sludge Dewatering Machine Working Principle

1. Feed: The suspension or slurry is fed into the rotating drum via a central feed pipe.

2. Sludge dewatering Separation: The high-speed rotation of the drum generates strong centrifugal force, causing heavier solid particles to settle on the inner wall of the drum, forming a sediment layer.

3. Solid Discharge: The internal screw conveyor rotates at a slightly different speed from the drum, continuously pushing these deposited solids toward the tapered end of the drum, where they are then discharged through the discharge port.

4. Liquid Discharge: The lighter liquid phase remains inside, forming a liquid ring, and overflows from the larger end of the drum, where it is discharged through a separate outlet.

Key Components and Principles

1. High-Speed Drum: Responsible for generating strong centrifugal force to achieve separation.

2. Sludge Dewatering Machine: Acting like a screw, it propels solids toward the discharge outlet.

3. Differential Speed: The slight speed difference between the drum and the screw is critical to the conveyor's ability to effectively move solids.

4. Corrosion-Resistant Materials: Typically made of stainless steel to prevent corrosion of the processed material.

Common Applications

1. Wastewater Treatment: Used for sludge dewatering machine from industrial and domestic wastewater.

2. Plastic Recycling: Drying and dehydrating various plastic materials.

3. Food and Beverage Industry: Separating and dehydrating products such as vegetables.

4. Chemical and Pharmaceutical Industry: Used for the precise separation of solids and liquids.

5. Petrochemical and Mining: Processing of materials such as coal.
